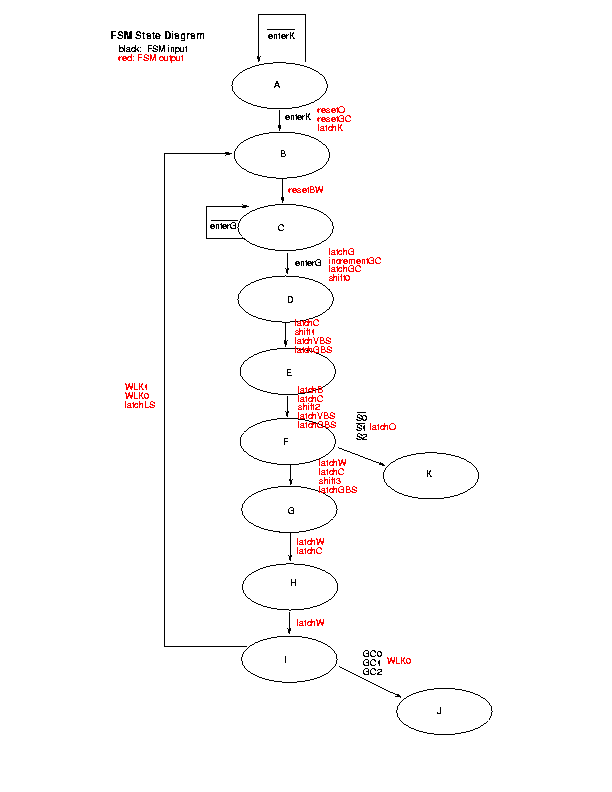

FSM State Table FSM Inputs and Outputs FSM Magic Diagram FSM IRSIM FSM MEG --MEG program --Finite State Machine for Mastermind Project --state transition on every clock INPUTS: S2 S1 S0 RESTART enterG enterK GC2 GC1 GC0; OUTPUTS: latchG shift0 shift1 shift2 shift3 latchGBS resetV latchVBS latchK WLK1 WLK0 latchGC resetGC incrementGC latchLS latchB resetBW latchW resetO latchO latchC; RESET ON RESTART TO A; A: IF enterK THEN B(resetO resetGC latchK) ELSE LOOP; B: GOTO C(resetBW); C: IF enterG THEN D(latchG incrementGC latchGC shift0 latchGBS resetV) ELSE LOOP; D: GOTO E(latchC shift1 latchVBS latchGBS); E: GOTO F(latchB latchC shift2 latchGBS latchVBS); F: CASE (S0 S1 S2) 0 0 1 => K(latchO); ENDCASE => G(latchW latchC shift3 latchGBS latchVBS); G: GOTO H(latchW latchC); H: GOTO I(latchW); I: CASE (GC0 GC1 GC2) 1 1 1 => J(latchO); ENDCASE => B(latchO); J: GOTO A(WLK0); K: GOTO A(WLK1 WLK0 latchLS); FSM State Diagram
